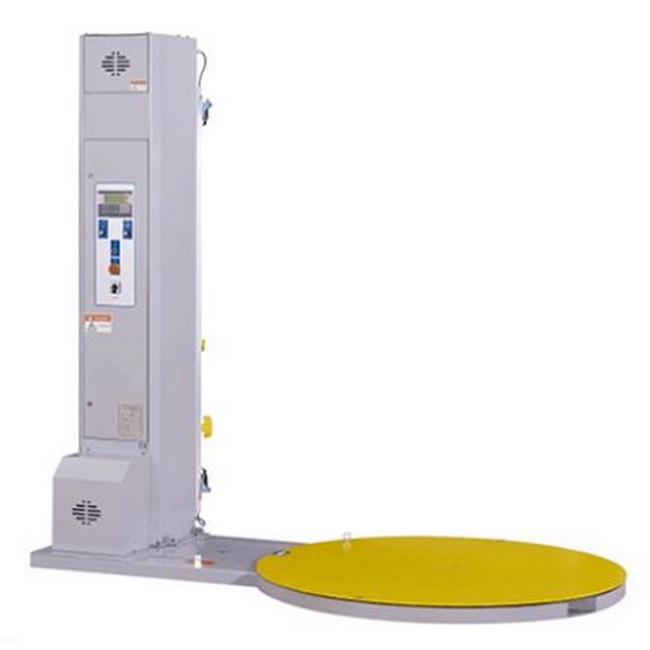

Pallet wrappers in dispatch operations significantly increase output and with more securely wrapped pallets, the likelihood of damaged in transit is reduced.
- A pallet wrapper improves stability of products or packages, forming a unit load.
- Allows efficient handling and storage of unit loads.
- Adds an element of protection from dust and moisture.
- Diameter of turntable: 1500 mm.
- Turntable height: 80 mm.
- Pallet height: 2100 mm.
- Maximum pallet size: 1200 x 1200 mm.
- Maximum pallet size: 1200 x 1000 mm.
- Film roller core diameter: 250 mm.
- Film roller outside diameter: 750 mm.
- Maximum film roller weight: 13.8 kg.
- Turntable speed: 1-10 cycles per minute.
- Turntable motor: 0.75 kw.
- Film carriage motor: 0.18 kw.
- Power supply: 220V 50HZ 1 Phase.
- Precise phase stopping at cycle end.
- Photocell to read pallet height.
- Slow start and stop.
- Stop and go back to home position.
- Photo-eye to read pallet height.
- Variable turntable speed.
- Screen control board.
- Foldable tower.
- Front and read forklift access point for easy move.
- Variable turntable and film carriage speed.
- Middle enforcement setting.
- Components brand: PLC screen - ENC China, Motor - Chinese - Invertor - Schneider.
- Installation is required - Pricing available on order placement.
